A better Figure 2: the threshold the bar chart hides

The original

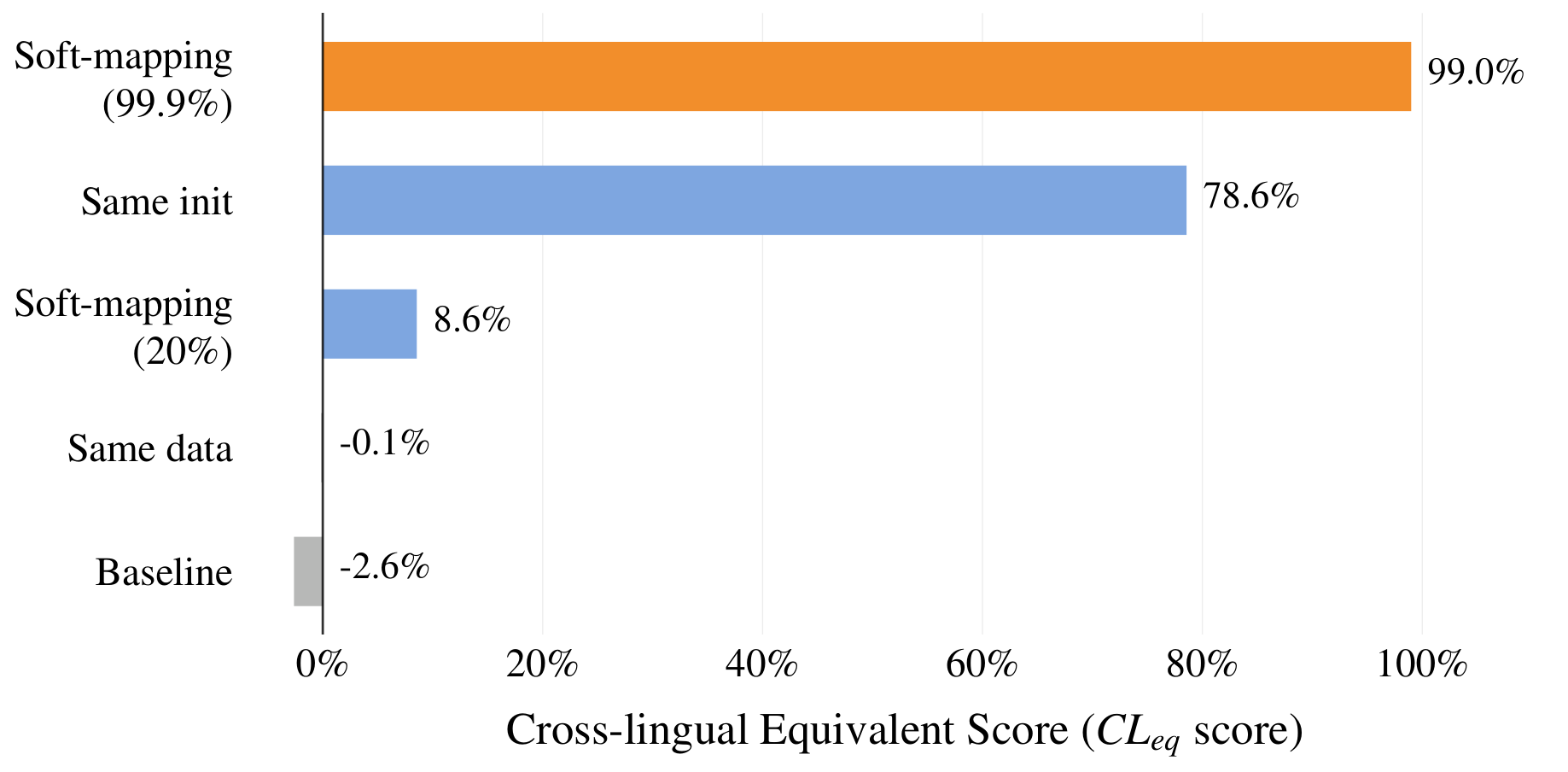

Figure 2 mixes two kinds of things in one bar chart: conditions (baseline, same data, same initialization) and points on a dial (soft-mapping at 20% and 99.9%, where a fraction p of each token pair’s embedding is shared). The text’s main claim about this experiment is a sharp threshold: “At 20% tying, generalization remains weak with CLeq = 8.6%; at 50% tying it jumps to 82.7%”. But the 50% point, the one that shows the jump, is not in the figure.

The full sweep is in the appendix (the soft-mapping table), and it covers two settings: the clone languages, and English–WWT-Arabic. Plotted together, they tell a better story.

The redesign

Each line is normalized by its own value at full sharing (p = 100%), so both fit on one axis: “how much of the achievable transfer do you get when sharing a fraction p of the embedding?” Hover a point for the raw CLeq.

{
  "type": "line",
  "data": {
    "labels": ["0%", "20%", "50%", "90%", "99%", "99.9%", "100%"],
    "datasets": [
      {
        "label": "English₁–English₂ (clone languages)",
        "data": [-2.6, 8.6, 82.7, 95.8, 99.1, 99.0, 100],
        "borderColor": "#2f6fde",
        "backgroundColor": "#2f6fde",
        "borderWidth": 3,
        "pointRadius": 5,
        "tension": 0
      },
      {
        "label": "English–WWT-Arabic (natural pair)",
        "data": [null, 7.9, 13.5, 76.2, 83.3, 81.0, 100],
        "borderColor": "#e8590c",
        "backgroundColor": "#e8590c",
        "borderWidth": 3,
        "pointRadius": 5,
        "tension": 0
      }
    ]
  },
  "options": {
    "responsive": true,
    "plugins": {
      "title": { "display": true, "text": "Share of the achievable transfer vs. fraction of embedding shared" },
      "legend": { "position": "bottom" }
    },
    "scales": {
      "x": { "title": { "display": true, "text": "Fraction p of each token pair's embedding that is tied (not to scale)" } },
      "y": { "min": -10, "max": 105, "title": { "display": true, "text": "% of CLeq at full sharing" } }
    }
  }
}

What the new figure shows that the old one didn’t

• The cliff is real, and it’s in a different place for the two settings. Clone languages jump between 20% and 50% sharing. The natural pair is still at 13% of its ceiling at 50%, and only jumps between 50% and 90%. Natural languages need much more sharing before knowledge flows.
• Reserving a few language-specific dimensions is cheap. At p = 90% (96 free dimensions out of 960) the natural pair keeps 76% of the benefit, which supports the paper’s “soft mapping” proposal for restoring language identity.
• It invites the right next question: where exactly between 50% and 90% is the WWT cliff, and why is it later?

Design decisions

• A line, not bars, because p is a dial, not a set of categories.
• Normalize each series so a 12.6%-max curve and a 100%-max curve can share an axis. The raw numbers stay in the table and tooltips.
• Conditions that aren’t on the dial (same data, same initialization) belong in a separate, small panel or table, not in the same bar list.
• Honest axis: the x-axis is evenly spaced but the values are not, so it says “not to scale”. Plotting the number of free dimensions on a log axis would be a scale-true alternative; try it!

Data: the appendix soft-mapping table and Figure 2 of (Gaber et al., 2026).
