The Illustrated Speculative Decoder

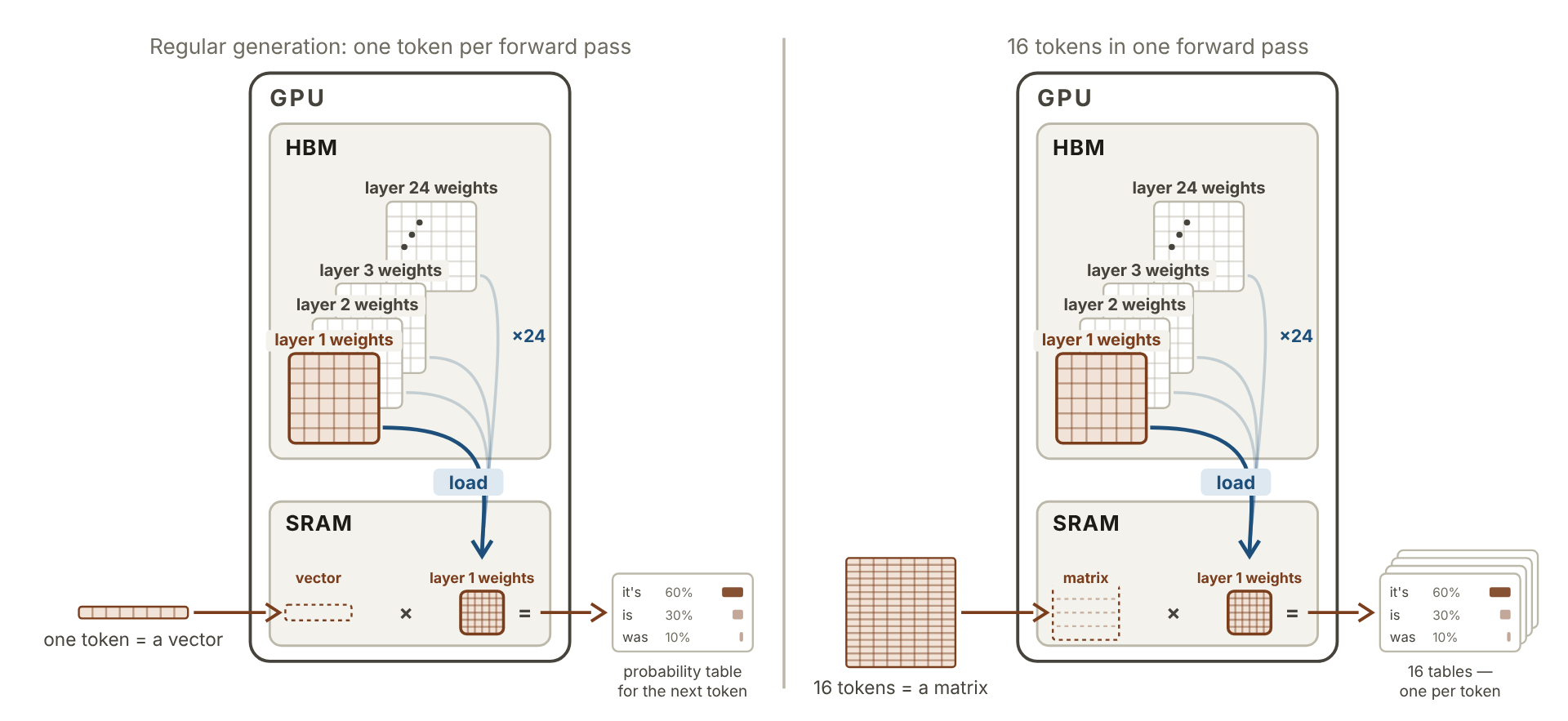

A single forward pass

A forward pass is multiplying every layer’s weight matrices against the input.

For one input you load all the weight matrices into SRAM (× 24). So it is cheaper to feed in a matrix holding all the tokens (= vectors) than one vector at a time.

The catch: at inference the model doesn’t know the next token until it computes it — so one vector goes in at a time. In contrast, at training the whole text is known in advance — so all the tokens go in at once. Speculative decoding is the way to exploit this at inference too (coming up…)

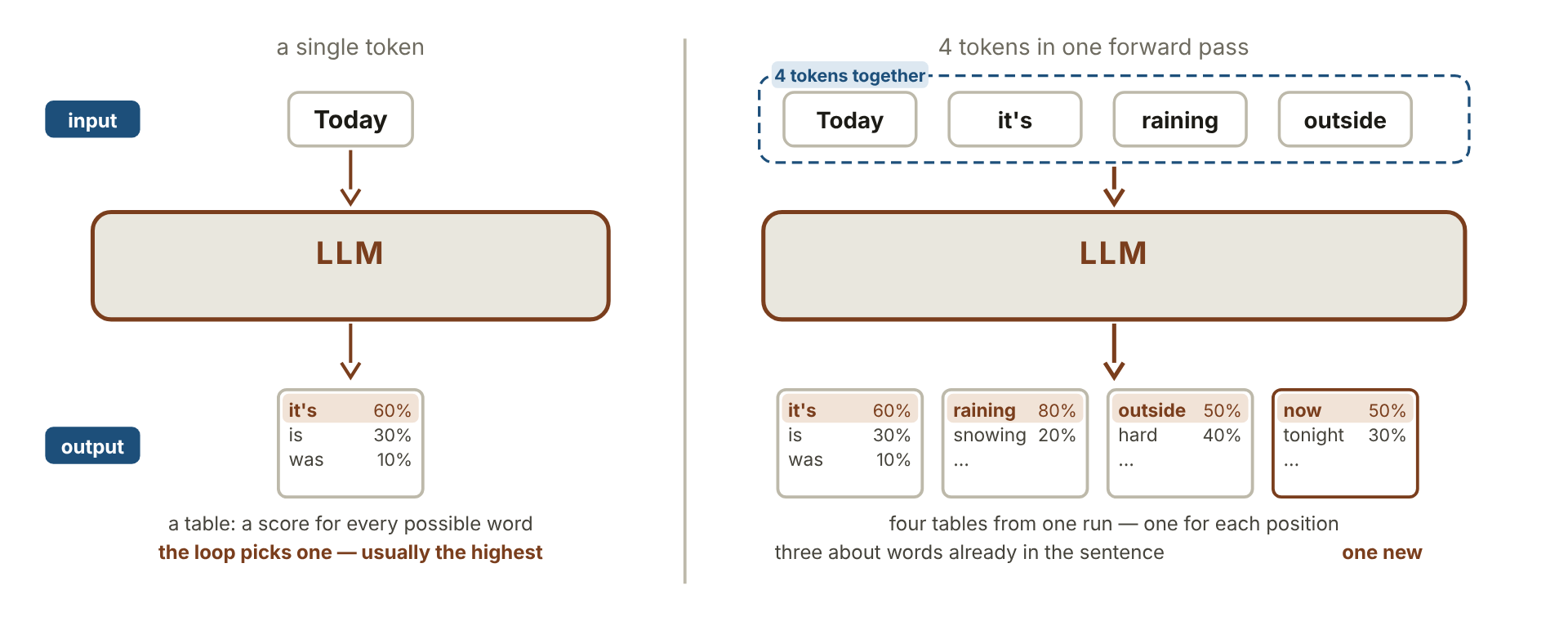

A model’s input and output

Input: a token, or several tokens at once. Output: a probability table for the next word, for every token that went in.

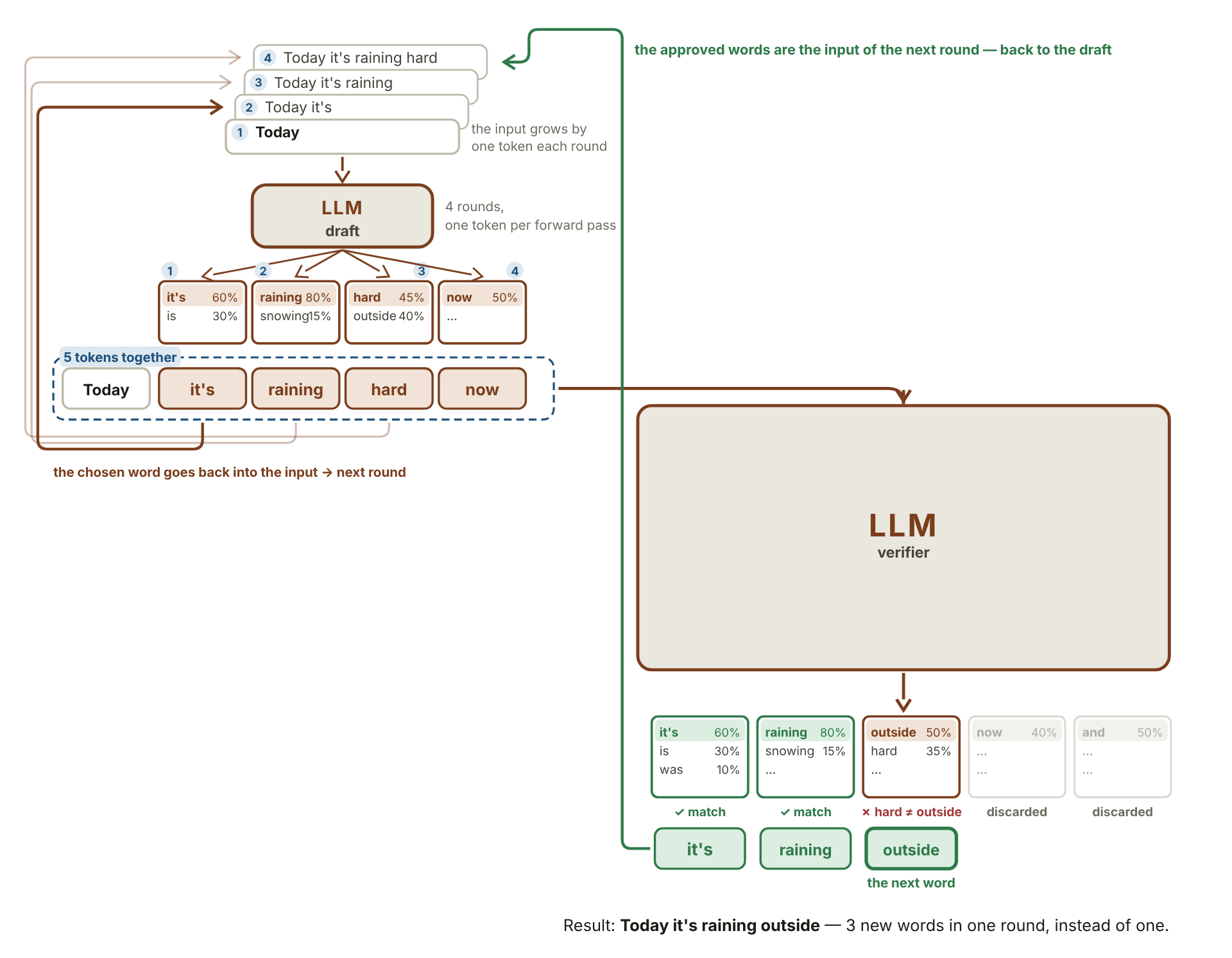

Speculative decoding

A small model guesses a few tokens ahead, one after another. The large model takes all of them at once and checks.

The gain: the large model gets several tokens in one forward pass — it loads its weights once, not once per token.

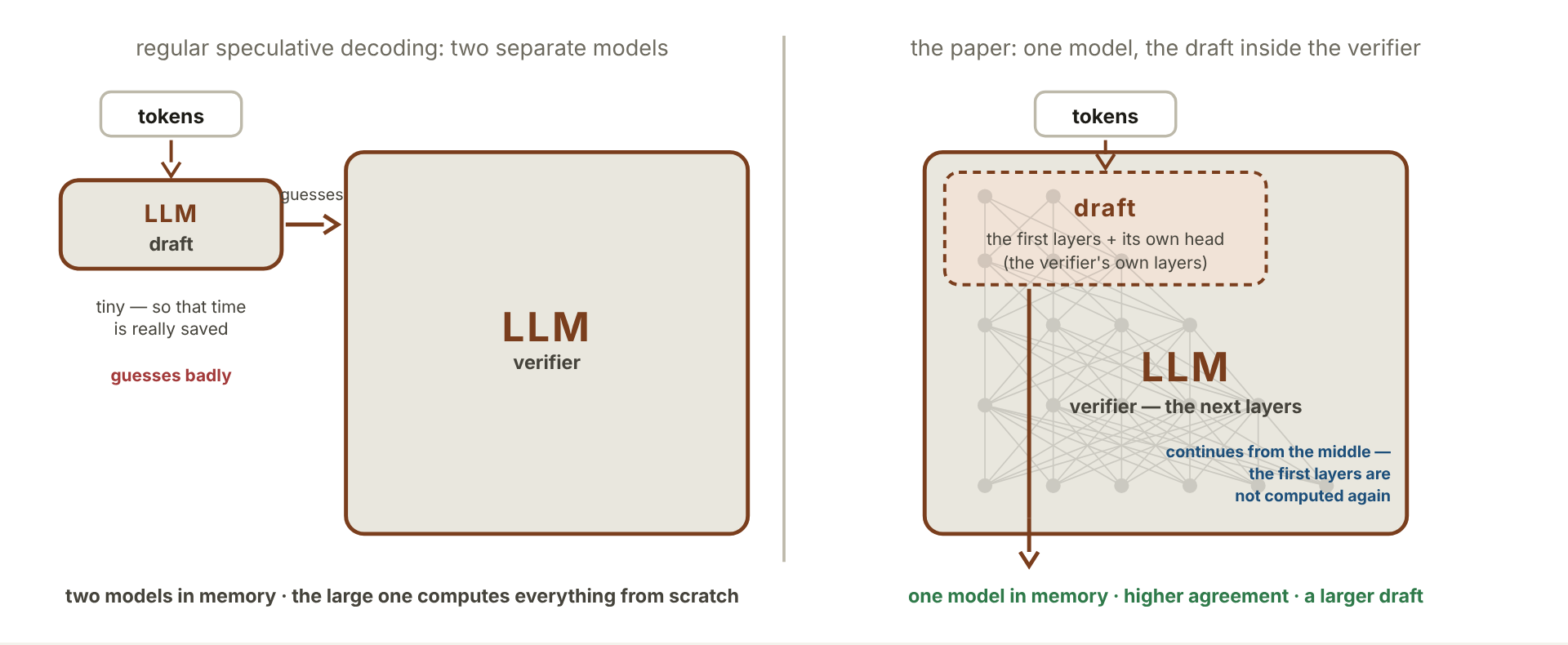

A draft that is part of the verifier

The paper: Matryoshka LM Suites.

The problem: in speculative decoding with two separate models, the draft has to be tiny — so that time is really saved. But a tiny draft guesses badly: it agrees with the large model less often, and more guesses are rejected.

What the paper proposes: train the draft and the verifier as one model — the draft is the first layers of the verifier, with its own head, and during training the large model distills into the small one.

What this gives:

• The small model agrees with the large one more — same layers + distillation.
• One model in memory, not two.
• Per the paper: the verifier does not recompute the first layers — the draft already did.
• So the draft can be larger than usual.
